Reducing Operational Costs With Efficient Acetylene Gas Plant Systems
In sectors such as welding, metal cutting, fabrication, shipbuilding, automotive repair, chemical processing, and construction, acetylene is valued for its high flame temperature and precise control in oxy-acetylene applications. However, relying on frequent cylinder deliveries often results in escalating logistics fees, rental charges, supply delays, and unpredictable pricing.
Installing an on-site acetylene gas plant provides a practical way to gain control over costs while ensuring consistent, high-purity production. Sanghi Overseas, the export division of the Sanghi Organization, supplies advanced acetylene production plants designed for efficiency, safety, and strong return on investment.
This article explains how these systems operate and demonstrates the key ways an efficient acetylene gas plant can lower your day-to-day operational expenses.
How an Acetylene Gas Plant Works: The Core Process
Acetylene is generated through the controlled reaction of calcium carbide with water in a carbide-to-water generator:
CaC₂ + 2H₂O → C₂H₂ + Ca(OH)₂ + heat
The process in Sanghi ORG acetylene gas plants follows a safe, reliable sequence:
- Calcium Carbide Feeding Granulated calcium carbide (typically 4–50 mm) is fed from twin hoppers into the generator using hydraulic or pneumatic controls for steady, automated dosing.
- Reaction in the Generator Carbide reacts with water in a stirred chamber under tightly monitored temperature and pressure conditions. Agitation and sensors prevent hotspots and maintain safe operation.
- Gas Cooling and Scrubbing The hot acetylene passes through water scrubbers and coolers to remove dust, impurities, and excess heat, ensuring cleaner gas for downstream steps.
- Drying and Compression The gas is dried (using calcium chloride or molecular sieves) and compressed to low pressure for safe dissolution in acetone.
- Cylinder Filling Acetylene is dissolved in acetone inside porous-filled cylinders via an integrated filling manifold, enabling high-volume output.
- By-Product Handling The resulting calcium hydroxide (slaked lime) slurry is discharged, filtered, and managed for disposal or resale.
Sanghi ORG acetylene gas plants achieve high gas yield (up to 98%) with built-in safety features including flashback arrestors, flame-proof motors, automatic pressure/temperature controls, and pneumatic valves.

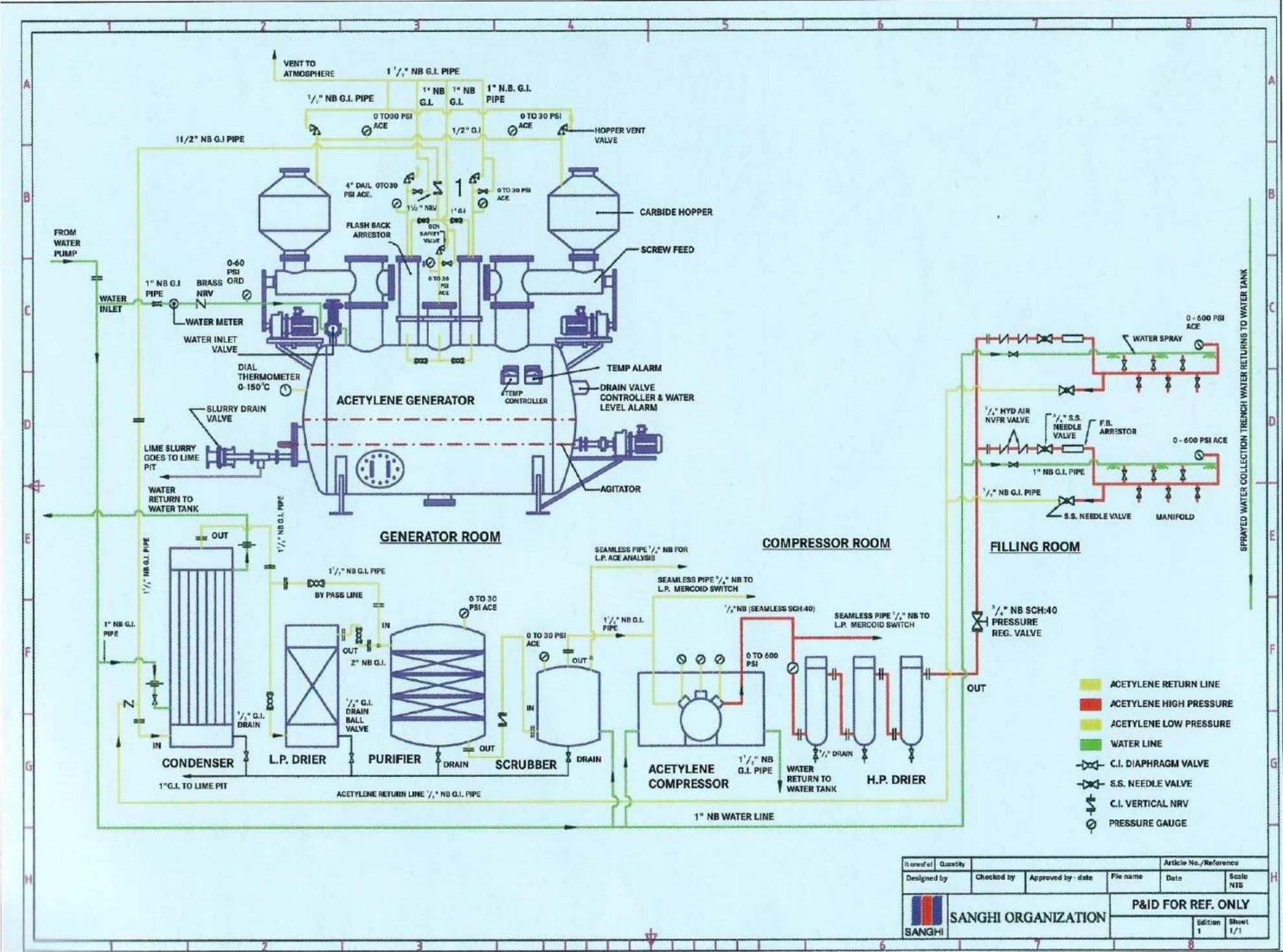

Piping and Instrumentation diagram of an acetylene gas plant showing carbide feeding, reaction, purification, and cylinder filling stages
Key Ways Efficient Acetylene Gas Plants Reduce Operational Costs
A well-engineered acetylene production plant delivers measurable savings across multiple areas:
- Reduced Raw Material Waste — Precise feeding and high-yield reaction minimize calcium carbide consumption (often the largest single cost, 60–70% of operating expenses).
- Lower Energy and Utility Bills — Optimized cooling, low-pressure operation, and efficient components keep electricity and water usage minimal.
- Decreased Labor Needs — Automatic controls reduce operator involvement to basic monitoring and loading, cutting payroll and training expenses.
- Eliminated Logistics and Rental Charges — On-site generation removes delivery fees, cylinder rentals, and dependency on external suppliers.
- Lower Maintenance and Downtime — Durable construction and reliable safety systems extend plant life to 20+ years with routine, low-cost upkeep.
- Potential By-Product Revenue — Filtered slaked lime can be sold for use in construction, agriculture, or water treatment, creating an additional income stream.
These factors combine to deliver a strong return on investment, particularly for plants in the 45–200 m³/hr capacity range.

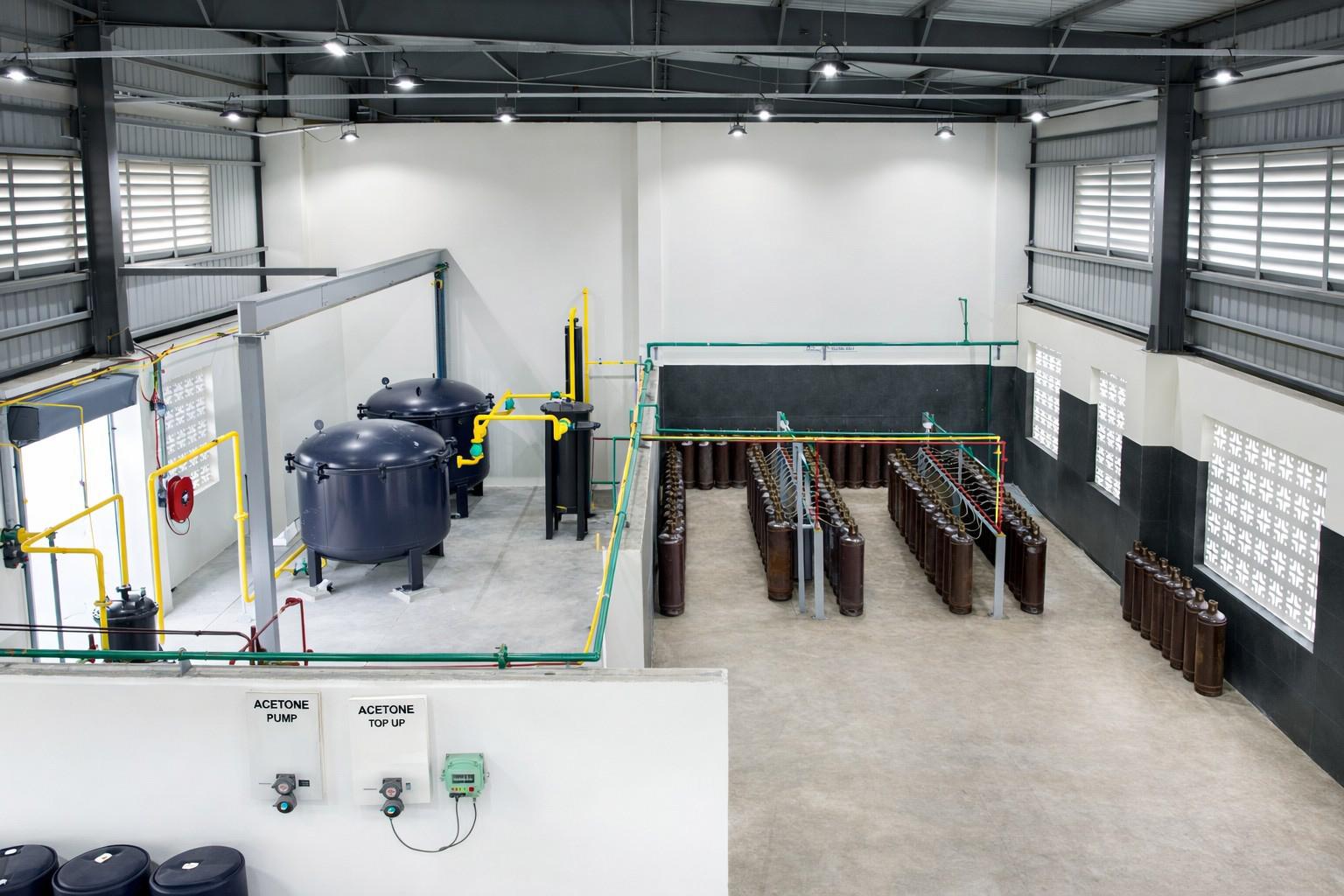

Example installation of a Sanghi ORG acetylene gas plant, cylinder filling station – compact, safe layout optimized for industrial efficiency
Why Choose Sanghi Overseas as Your Acetylene Plant Manufacturer
Sanghi Overseas exports acetylene gas plants manufactured by the Sanghi Organization, featuring:
- Capacities from 45 to 200 m³/hr
- Fully automatic twin-hopper feeding
- Advanced safety and control systems
- High-purity output suitable for welding and cutting
- Long-term after-sales support with original spares
For full specifications, capacity options, and project support, visit:
Acetylene Gas Plant Manufacturer
Frequently Asked Questions
What is the biggest cost-saving benefit of an on-site acetylene gas plant?
An on-site acetylene gas plant eliminates cylinder delivery and rental charges while reducing raw material waste and logistics dependency, delivering the most direct impact on operational expenses.
How much calcium carbide does an efficient acetylene production plant consume?
High-yield systems achieve up to 98% efficiency, meaning significantly less carbide per cubic meter of acetylene produced—often the single largest way to cut recurring costs.
Why do Sanghi ORG acetylene gas plants offer strong energy efficiency?
Sanghi ORG acetylene gas plants use optimized reaction control, efficient cooling systems, and low-power components to keep electricity and water consumption low compared to older designs.
What maintenance is typically required for an acetylene gas plant?
Routine inspections of sensors, valves, scrubbers, and the generator keep the system running smoothly. Sanghi ORG acetylene gas plants are built for decades of reliable service with minimal downtime.
Can slaked lime from an acetylene production plant generate additional revenue?
Yes—filtered and dried calcium hydroxide can be sold for construction, agriculture, or industrial uses, turning a by-product into a source of income.
How safe are modern acetylene gas plants for industrial use?
Modern acetylene gas plants incorporate flashback arrestors, flame-proof motors, automatic pressure/temperature monitoring, and pneumatic controls to meet stringent safety standards.
Are Sanghi Overseas and Sanghi Organization connected to Sanghi Oxygen?
No. Sanghi Overseas and Sanghi Organization are a completely independent company and manufacturer from Sanghi Oxygen. We operate separately and are direct competitors—verify the company name when evaluating options.
If you are looking to reduce acetylene-related costs and achieve greater supply independence, contact Sanghi Overseas—one of India’s trusted acetylene plant manufacturers—for tailored, high-efficiency solutions.
